The Janz EM-S: A Modular German Precision Revolver

Key Takeaways:

• The EM-S is the quick-change version of Janz’s smallest revolver frame.
• Compatible configurations range from .22 Long Rifle through .44 Magnum.
• Collectors should assess each set by its originality, completeness, documentation, and condition.

The Janz EM-S belongs to a small category of revolvers designed as configurable systems rather than fixed combinations of frame, barrel, and caliber. Built in Malente, Germany, it combines a traditional double-action revolver mechanism with interchangeable barrels and cylinders.

From Precision Engineering to Revolver Production

Janz-Präzisionstechnik traces its origins to a precision-mechanics workshop established in Kiel in 1935. The company later relocated to Malente and developed manufacturing capabilities spanning laboratory equipment, camera repair, and precision-machined industrial components. [1]

Its firearms operation came much later. Janz had manufactured components for Korth, the German handgun maker, before deciding in 1997 to develop a revolver under its own name. The company hired René Ganz, identified in its history as Willi Korth’s last personal apprentice, to assist with the project. Janz completed prototype serial number 0001V in 1998, followed by a larger-frame .454 Casull prototype in 1999. [2]

According to the manufacturer, early examples were individually built before production incorporated CNC machining around 1999. In 2000, Janz introduced its interchangeable-caliber system, designed to accommodate multiple cylinders and barrels on a common frame. [2] Contemporary specialist coverage confirms that hand fitting and final adjustment remained part of production after CNC manufacturing was adopted. [3]

Understanding the EM-S

Janz offers three principal frame sizes: EM, E, and MA. The EM is the smallest and supports chamberings from .22 Long Rifle through .44 Magnum. The medium E frame extends the available range through .454 Casull, while the larger MA is intended for the .460 S&W Magnum and .500 S&W Magnum. [4]

The EM-S is the quick-change version of the EM. It should not be confused with the larger E-S system: although Janz’s broader interchangeable-frame range reaches .454 Casull, the smaller EM and EM-S are limited to cartridges through .44 Magnum. [3]

Current manufacturer specifications list barrels from 2½ to 12 inches for the EM and E platforms. The MA begins at four inches and is offered only in fixed-caliber form. [4] This range allows an EM-S set to combine several barrel lengths and compatible chamberings without requiring a separate serialized frame for every configuration.

The Quick-Change System

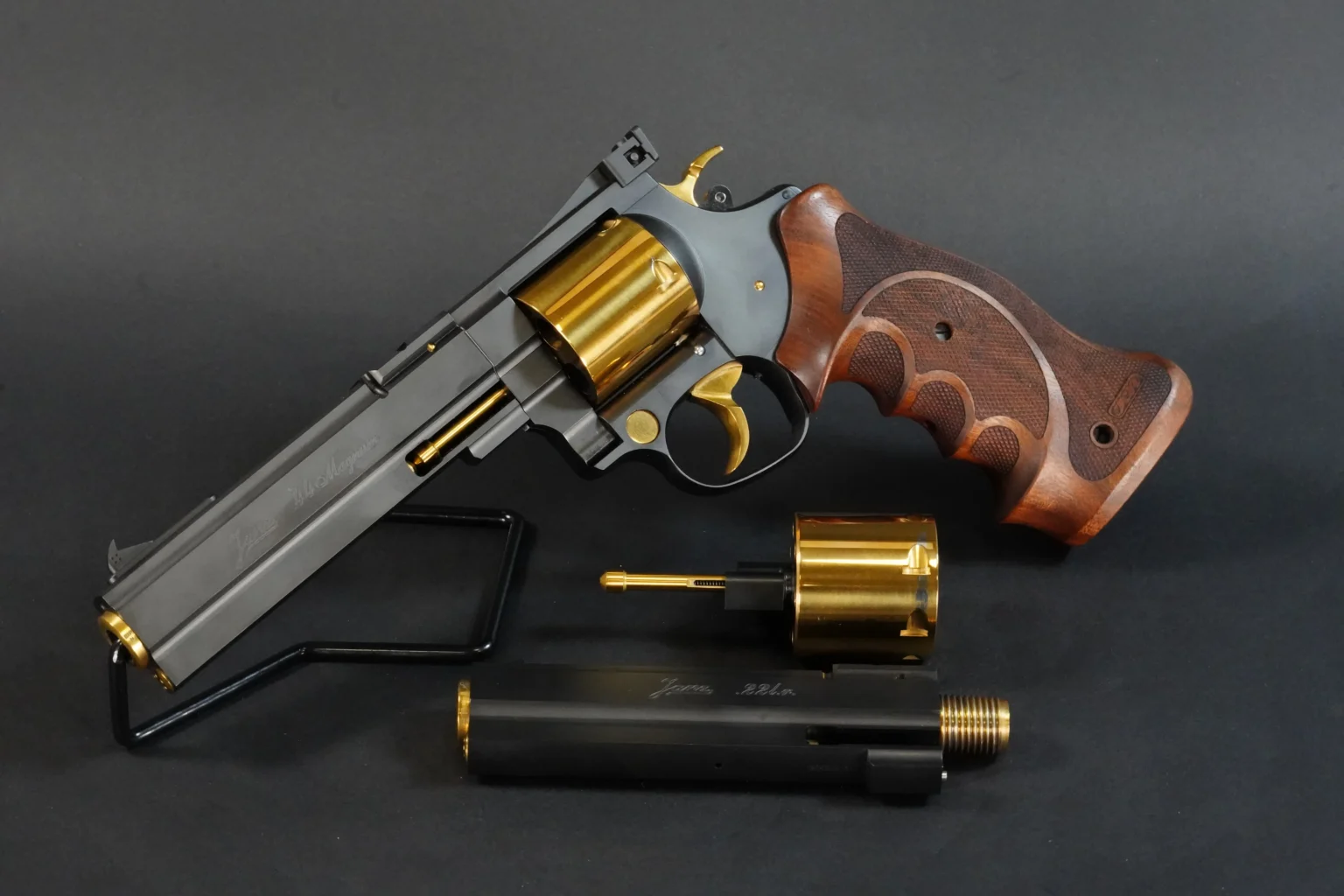

Changing an EM-S configuration involves removing the cylinder-and-yoke assembly and replacing the barrel. A dedicated mounting fixture and wrench loosen the barrel, which can then be unscrewed from the frame. The replacement barrel is threaded into place and indexed before final tightening; the corresponding cylinder assembly is then installed. [3]

The system therefore differs from a conventional revolver with a factory-installed barrel. It also goes beyond systems that merely exchange cylinders or permit barrels of different lengths in a single caliber. Janz machines the participating components as a matched system, and cylinders supplied with a multicaliber set require fitting to the hand and frame. [3]

Construction and Adjustment

Janz specifies a CNC-machined chrome-molybdenum-steel frame with a hardened surface. The revolver operates in both single- and double-action modes and incorporates an externally adjustable trigger, an adjustable trigger stop, and interchangeable sight components. The manufacturer also offers high-polish, matte, stainless, and plasma-coated finishes. [5]

Cylinder capacity varies with chambering and frame size. Janz lists capacities of up to eight rounds in .22 Long Rifle, seven in .357 Magnum, six in .44 Magnum, and five in .454 Casull across its quick-change systems. [5] These figures should be read as system-wide specifications rather than capacities applicable to every EM-S configuration.

Optional treatments extend beyond mechanical configuration. Janz advertises deep and relief engraving, gold-wire inlays, custom motifs, and several surface finishes. [6] Such work can make individual revolvers visually distinctive, but the central technical feature remains the interchangeable barrel-and-cylinder architecture.

Collector Significance

The EM-S is best understood as the small-frame member of a carefully engineered revolver family, not as a universal platform spanning the entire Janz caliber range. Its appeal lies in the combination of German precision manufacturing, user-changeable configurations, adjustable controls, and extensive factory customization.

For collectors, completeness matters. The original case, fitted cylinders, barrels, changing tools, sights, grips, documentation, and factory correspondence all help establish what belonged to a particular set. Claims about rarity, originality, or value should nevertheless be evaluated firearm by firearm. The EM-S is technically unusual, but its configuration alone does not establish provenance or guarantee future appreciation.

Frequently Asked Questions

Sources

1. Janz-Präzisionstechnik GmbH. “The Company.”
2. Janz-Präzisionstechnik GmbH. “Development Stages of the Janz Revolver.”
3. Wood, Mike. “The Janz Revolver: The Best Gun You’ve Never Heard Of.” RevolverGuy, March 2, 2019; updated October 8, 2024.
4. Janz-Präzisionstechnik GmbH. “Frame EM/E/MA.”
5. Janz-Präzisionstechnik GmbH. “Quick Change System Revolver Type S and EM/S.”
6. Janz-Präzisionstechnik GmbH. “Engraving and Surface Finishing.”
